Aluminum
Ceiling Systems
From clip-in panels to acoustic baffles and curved combination systems -- PUMAY engineers precision metal ceilings for airports, hotels, hospitals, commercial complexes, and landmark architecture worldwide.
Five Ceiling System Categories
Each system is engineered for specific performance, aesthetic, and installation requirements across commercial and institutional projects.

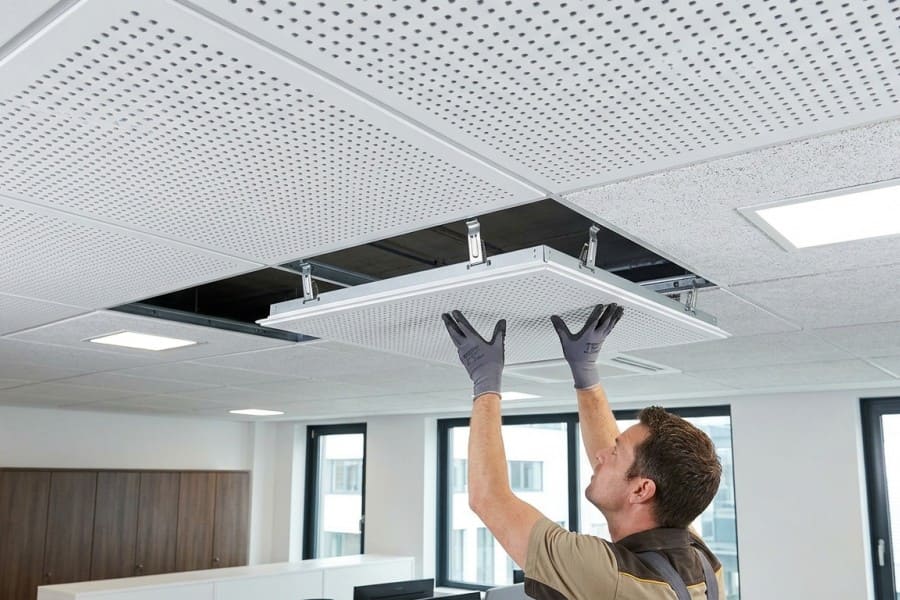

Clip-in Ceiling
Modular snap-in aluminum panels offering fast installation, easy access for maintenance, and consistent flat or textured surfaces. Available in square and rectangular formats.
- Square & rectangular modules
- Tool-free panel removal
- Concealed or exposed grid options
Ideal for offices, retail stores, and healthcare facilities requiring a clean, maintainable ceiling finish with access to MEP services above.

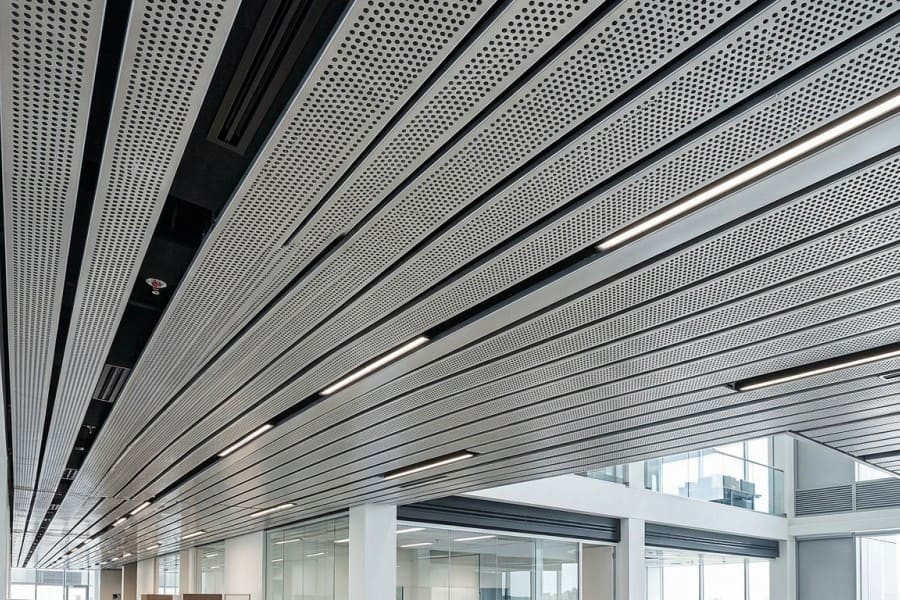

Metal Plank Ceiling
Long-span linear aluminum planks delivering a sleek, directional aesthetic. Available with solid color, wood-grain transfer print, or stone-effect finishes in multiple widths.
- Wood-grain & stone transfer print
- Multi-width: 50mm - 300mm
- Open or closed joint layouts
Popular for hotel lobbies, airport terminals, and high-end retail corridors where a warm, linear aesthetic is desired without sacrificing durability.

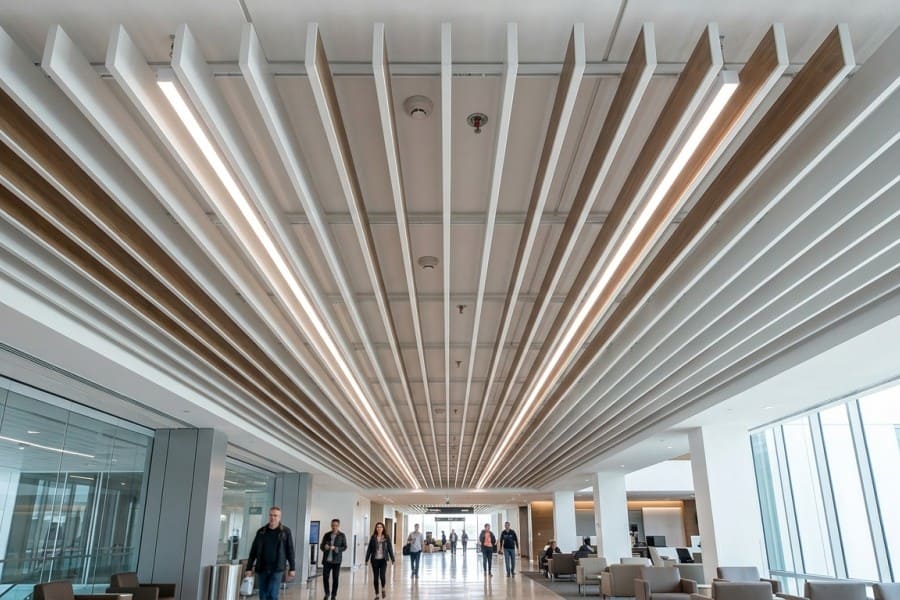

Baffle Ceiling
Vertical suspended blades in square tube, round tube, U-profile, teardrop, and bullet profiles. Creates striking three-dimensional depth and improves acoustic performance in large spaces.
- Square / Round / U / Teardrop / Bullet
- Custom height & spacing
- Open plenum for MEP concealment
Frequently specified for airports, transit hubs, sports arenas, and large commercial atriums where visual drama and acoustic control are equally important.

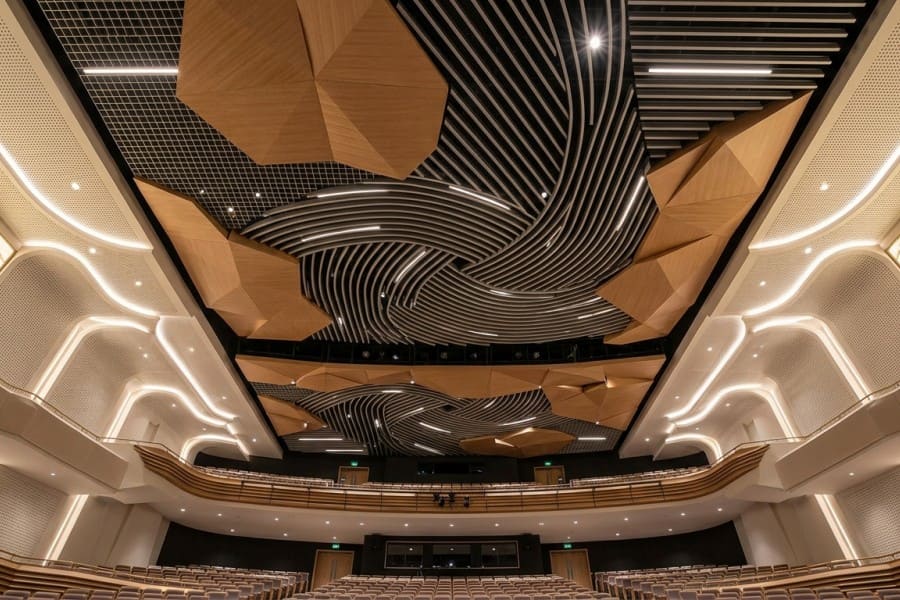

Special Combination Ceilings
Bespoke ceiling designs that combine multiple panel types, curved surfaces, and parametric geometries. Engineered from shop drawings to finished installation-ready components.
- Curved & wave-form surfaces
- Mixed plank + baffle + panel systems
- Drawing-based CNC fabrication
Designed for landmark projects -- luxury hotels, cultural centers, flagship retail, and corporate headquarters -- where the ceiling is an architectural statement.
Acoustic / Perforated Ceiling
Precision-perforated aluminum panels backed with acoustic fleece or mineral wool to reduce reverberation and improve speech clarity. Perforations available in round, square, slot, and custom patterns.
Engineering Advantages & Key Selling Points
PUMAY aluminum ceiling systems are engineered to exceed the demands of commercial and institutional construction projects.
Lightweight Construction
Aluminum alloy panels weigh 30-50% less than comparable steel or gypsum systems, reducing structural load and simplifying installation logistics on high-rise and large-span projects.
Corrosion & Moisture Resistant
PVDF and powder-coat finishes provide long-term protection against humidity, condensation, and coastal environments. Suitable for wet areas, kitchens, and high-humidity zones.
Fire Performance
Aluminum is inherently non-combustible. PUMAY panels meet Class A fire-rating requirements and can be supplied with test reports for compliance with international building codes.
Acoustic Performance
Perforated and baffle systems with acoustic backing achieve NRC values up to 0.90, controlling reverberation in open-plan offices, auditoriums, and transit spaces.
Easy Installation & Maintenance
Modular clip, hook, and snap systems allow individual panel replacement without disturbing adjacent areas. Reduces downtime for maintenance and MEP access in occupied buildings.
Full Customization
Every dimension, color (RAL/Pantone), perforation pattern, surface finish, and profile shape is customizable. PUMAY supports drawing-based manufacturing from concept to production-ready panels.

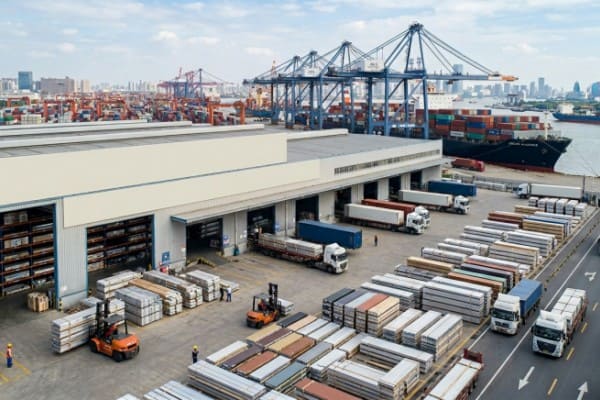

One-Stop Service: Design to Delivery
PUMAY provides complete project support -- from initial design consultation and shop drawing review, through CNC fabrication and surface finishing, to export packaging and on-time delivery coordination. One factory partner for your entire ceiling system.
Surface Treatment Options
Every panel finish is applied under strict quality control in our Foshan factory. Custom RAL and Pantone color matching available on all systems.

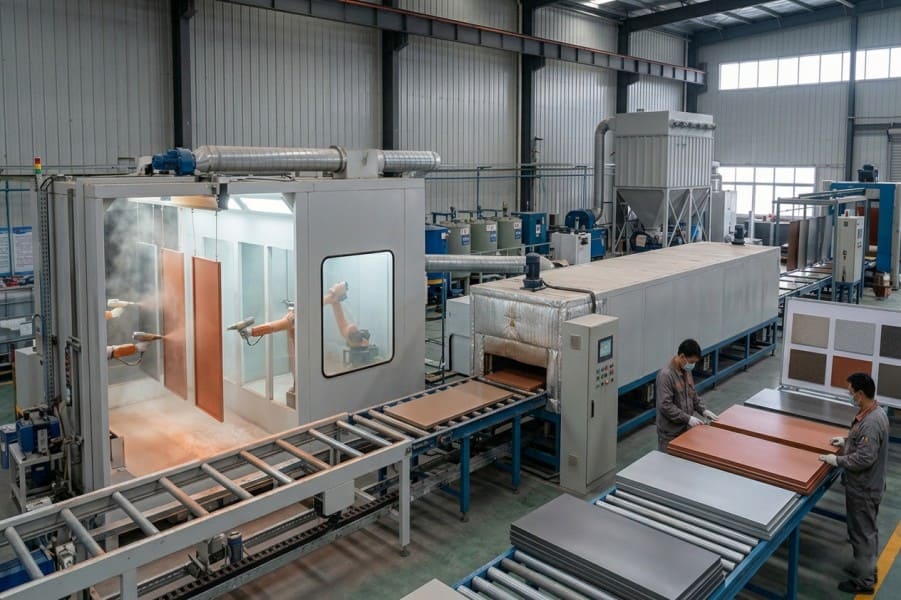

PVDF Coating
PremiumFluorocarbon resin coating offering superior UV resistance, chalk resistance, and color retention. Recommended for exterior and high-exposure applications. 20+ year durability.
Powder Coating
StandardElectrostatic powder coating in any RAL color. Excellent impact resistance and even coverage. Cost-effective solution for interior applications with full color customization.

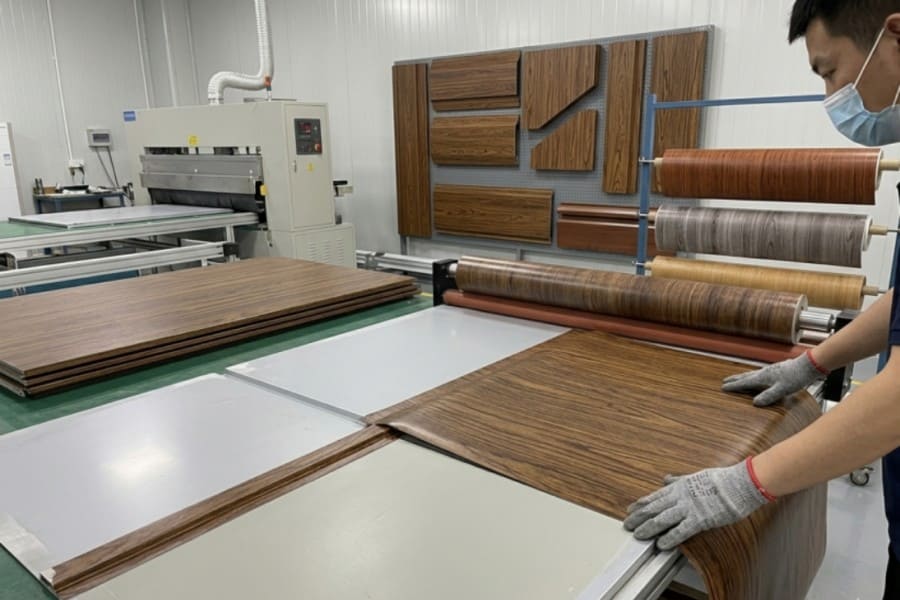

Wood Grain Transfer
DecorativeThermal transfer printing replicates natural wood, marble, and stone textures on aluminum surfaces. Achieves the aesthetic warmth of timber with the durability and fire resistance of metal.
Anodizing
TechnicalElectrochemical oxidation creates a durable, integrated oxide layer. Available in silver, champagne, bronze, and black. Excellent hardness and abrasion resistance for high-traffic areas.
Custom RAL / Pantone color matching available on all product lines. Contact us with your project color specification.
Alloy & System Performance Comparison
Select the right aluminum alloy and system specification for your project requirements.
| Specification | 1100 Alloy | 3003 Alloy | 5052 Alloy | 6063 Alloy |
|---|---|---|---|---|
| Primary Use | Simple flat panels | Clip-in & Plank | Coastal / marine | Extrusions / Baffles |
| Tensile Strength | 90 MPa | 130 MPa | 195 MPa | 150 MPa |
| Corrosion Resistance | Good | Very Good | Excellent | Very Good |
| Formability | Excellent | Very Good | Good | Very Good |
| Fire Rating | Class A | Class A | Class A | Class A |
| Typical Thickness | 0.6 - 1.0mm | 0.8 - 1.5mm | 1.0 - 2.0mm | 1.0 - 3.0mm |
| Cost Index | $ | $$ | $$$ | $$$ |
| Recommended System | Budget clip-in | Clip-in · Plank · Perforated | Coastal projects | Baffle · Extrusions |
* Performance data are indicative. Contact PUMAY for project-specific technical specifications and test reports.
Solutions for Every Stakeholder
Whether you are an architect specifying materials, a developer managing costs, or a contractor coordinating delivery -- PUMAY has a structured service path for you.
For Architects & Interior Designers
We support your creative vision with the technical capability to manufacture it. Submit your design drawings and receive shop drawings, material samples, and a detailed specification package.
- Custom profile, color, and perforation pattern development
- Shop drawing review and revision support
- Physical sample and mock-up panels available
- Full RAL / Pantone color library with coating samples
- Technical data sheets and fire / acoustic test reports
izes="(max-width: 768px) 100vw, 50vw">
"PUMAY provided detailed shop drawings within 48 hours and matched our custom RAL color exactly. The baffle ceiling was installed on schedule without a single modification."
-- Project Architect, Commercial Development
PUMAY Factory Strengths
A real manufacturing facility in Foshan -- not a trading company. Every panel is produced, finished, and quality-checked in-house before export.
Frequently Asked Questions
Answers to the most common questions from architects, contractors, and buyers.
What is the minimum order quantity for custom ceiling panels?
Can you match a specific RAL or Pantone color?
Do your ceiling systems meet fire safety standards?
What is the typical lead time from order to delivery?
Do you provide shop drawings and installation support?
Can I request physical samples before placing a bulk order?
Request a Quote or
Discuss Your Project
Whether you have detailed drawings ready or are still in the early specification stage, our team will respond within one business day with product recommendations, pricing guidance, and sample availability.
What to Include in Your Inquiry
- 1Project type and location
- 2Ceiling system type(s) of interest
- 3Approximate area (㎡) and timeline
- 4Color, finish, or performance requirements
- 5Drawings or reference images (if available)
Ready to Specify PUMAY Ceiling Systems?
From single-project samples to large-scale OEM supply -- PUMAY Aluminum is your factory-direct partner for precision architectural ceiling systems. Foshan-made, globally delivered.
