Aluminum Facade
Wall Cladding Panels
Precision-manufactured aluminum facade panels engineered for commercial buildings, curtain wall systems, and large-scale architectural projects. Factory-direct from Foshan, China -- custom shapes, finishes, and drawings accepted.
ISO 9001 Certified
Quality Management System
CNC Precision Processing
Tolerances to ±0.5mm
Shop Drawing Support
Technical drawings provided
Sample Available
Physical samples on request
Global Export Experience
Projects in 30+ countries
Product Details & Specifications
Engineering-grade data for project planning, procurement, and specification writing.
What Are PUMAY Aluminum Facade Panels?
PUMAY aluminum facade panels are high-performance exterior cladding systems manufactured from 1060, 3003, or 5005 series aluminum alloy. Each panel is CNC-formed, folded, welded, and coated to exact project specifications -- designed for long-term outdoor durability and architectural precision.
Unlike standard stock panels, PUMAY produces to drawing. Every project receives customized dimensions, edge profiles, bracket systems, and surface finishes. Our engineering team reviews shop drawings and provides pre-production samples before full batch manufacturing.
With over 5,000㎡ of factory floor in Foshan -- the global center of architectural aluminum manufacturing -- PUMAY supports curtain wall companies, facade contractors, developers, and international distributors with consistent quality and reliable lead times.
Core Performance Features
- Weather Resistance: PVDF coating passes 4,000+ hours salt spray test, UV-stable for 20+ years exterior use
- Lightweight Structure: 2mm panel weighs approx. 5.4 kg/m² -- reduces structural load vs. stone or GRC
- Fire Performance: A2-s1,d0 classification available (non-combustible aluminum substrate)
- Dimensional Precision: CNC bending to ±0.5mm tolerance, consistent across large production runs
- Easy Maintenance: Smooth PVDF surface resists dirt adhesion; clean with water and mild detergent
- Recyclable: 100% recyclable aluminum substrate -- supports green building certifications (LEED, BREEAM)
Expert Note from PUMAY Engineering
"For high-rise facades above 24m, we recommend 3mm PVDF-coated panels with hidden-frame bracket systems. Our team provides structural calculation references and can coordinate with your facade engineer on connection details."
-- PUMAY Technical Team, Foshan
Technical Specifications
| Parameter | Standard Value | Custom Range |
|---|---|---|
| Alloy Grade | 1060 / 3003 | 5005 available |
| Temper | H24 | H14, H18 on request |
| Standard Thickness | 2.0mm / 2.5mm / 3.0mm | 1.5mm - 6.0mm |
| Max Panel Size | 1,500 × 4,000mm | Custom per drawing |
| Surface Coating | PVDF 2-coat / 3-coat | Polyester, anodized |
| Coating Thickness | ≥ 30μm (PVDF 3-coat) | Per AAMA 2605 |
| Color Options | Full RAL chart | Color matching available |
| Bending Tolerance | ±0.5mm | ±0.3mm precision grade |
| Wind Load Resistance | ≥ 2.0 kPa (2mm @ 1.5×1.5m) | Structural calc provided |
| Fire Classification | A2-s1,d0 (EN 13501-1) | B1 with insulation backing |
| Salt Spray Test | ≥ 3,000 hrs (PVDF 2-coat) | ≥ 4,000 hrs (3-coat) |
| Thermal Expansion | 23 × 10⁻⁶ /°C | Per aluminum standard |
| Lead Time | 15-25 working days | Rush orders negotiable |
| MOQ | 200 m² | Sample: 1 panel |
* Specifications subject to final project confirmation. PUMAY provides pre-production samples and test reports upon request.
Applicable Standards
- AAMA 2605 -- PVDF coating performance
- EN 13501-1 -- Fire classification
- GB/T 23443 -- China national standard
- ASTM B209 -- Aluminum sheet & plate
- ISO 9001:2015 -- Quality management
Need a Test Report?
PUMAY provides third-party coating test reports, material certificates, and factory inspection reports for all export orders.
Request DocumentationSurface Finishes & Color Options
Recommended

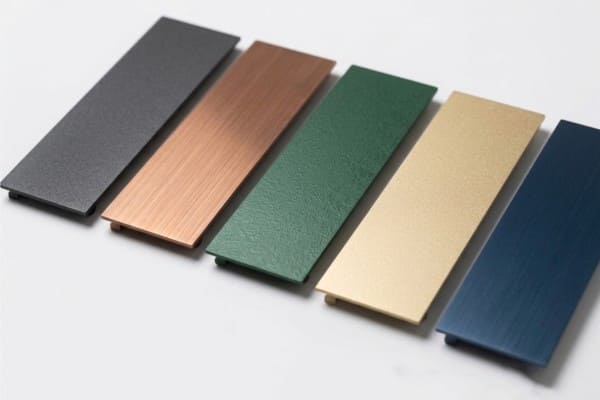

PVDF Fluorocarbon
2-coat / 3-coat / 4-coat
Premium exterior coating with 20+ year UV stability. Meets AAMA 2605. Ideal for high-rise facades, coastal environments, and projects requiring long-term color retention.
- UV resistance: Excellent
- Salt spray: ≥ 4,000 hrs
- Color range: Full RAL

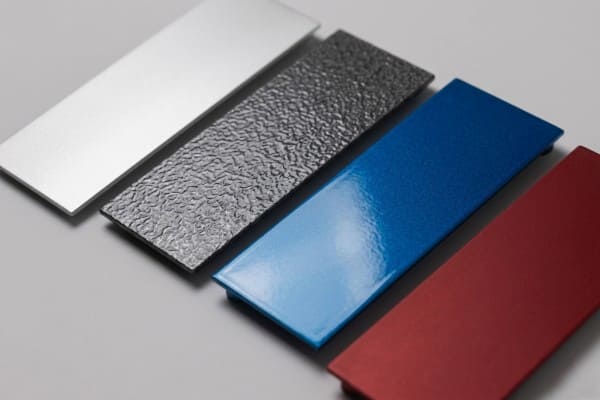

Polyester Powder Coating
Economy / Interior Grade
Cost-effective option for interior applications, semi-sheltered facades, or budget-sensitive projects. Wide texture range including matte, gloss, and metallic effects.
- UV resistance: Moderate
- Texture: Rich options
- Cost: Lower

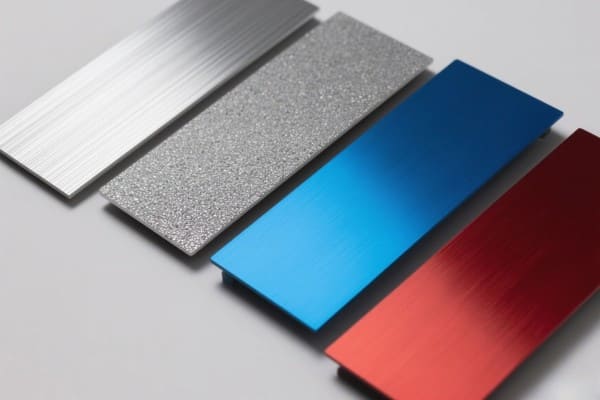

Anodized Finish
Architectural Grade
Electrochemical surface treatment creating an integral oxide layer. Provides a natural metallic appearance with excellent hardness and abrasion resistance. Popular for premium architectural projects.
- Hardness: Excellent
- Appearance: Premium metallic
- Color: Limited range
Popular Color Selections
All RAL standard colors available. Custom color matching from physical sample or color code. Minimum quantity applies for non-standard colors.
Color display is approximate. Request physical color chips for accurate specification. Full RAL Classic and RAL Design charts available.
Aluminum Facade Panel Types

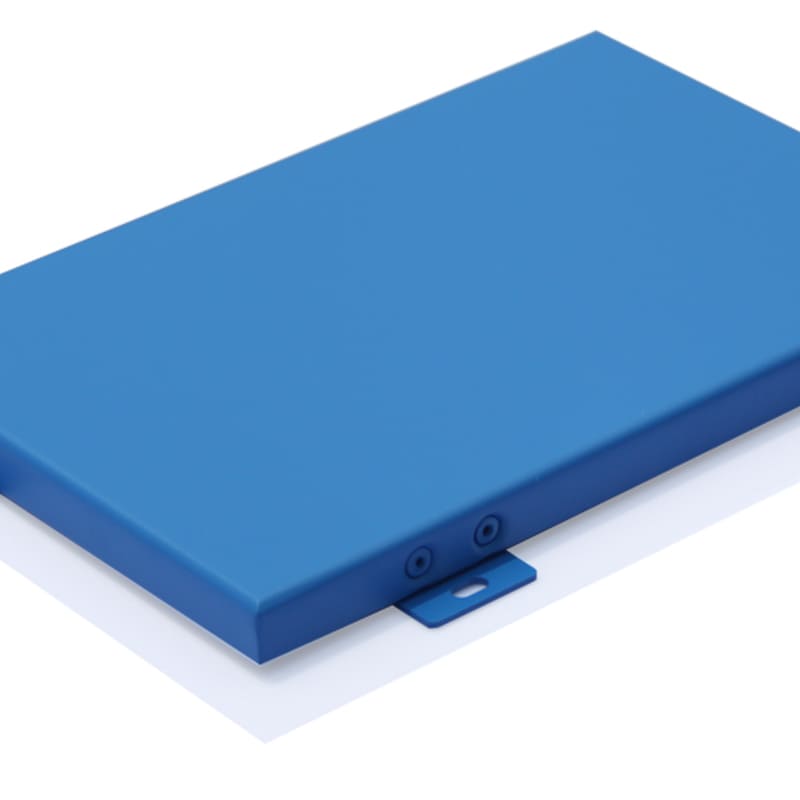

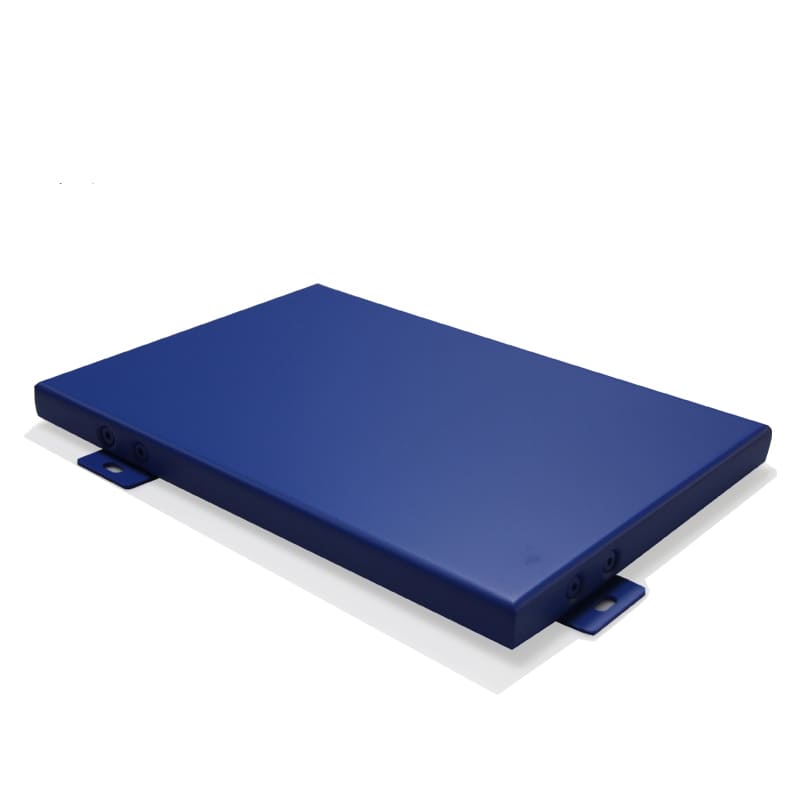

Standard Flat Panels
Single-skin aluminum panels with reinforced back ribs. The most common facade cladding solution for commercial and office buildings.

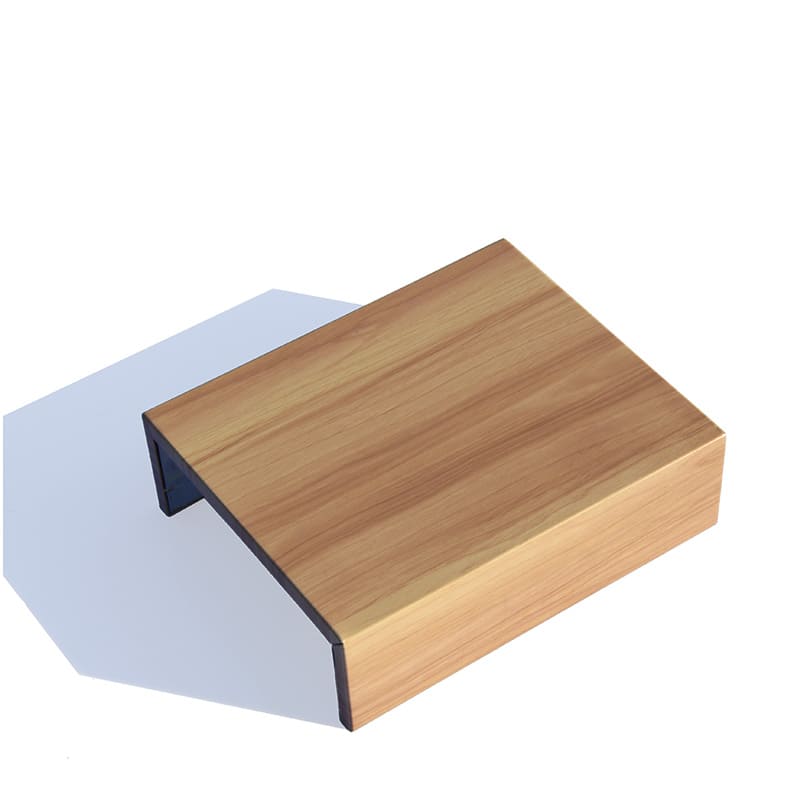

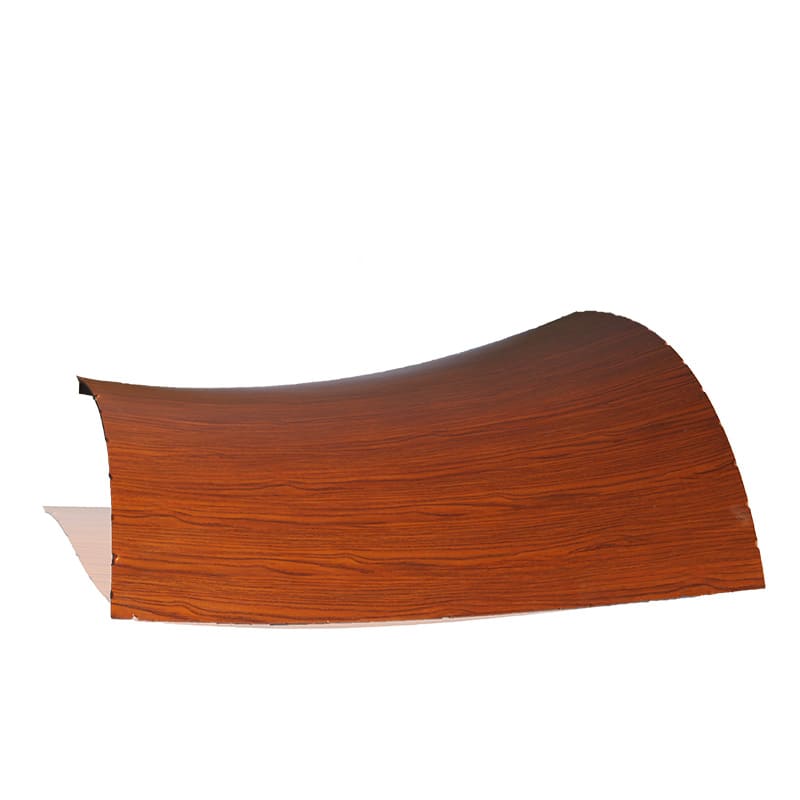

Curved / Bent Panels
Single or double-curved panels for cylindrical facades, arched entrances, and complex geometric building envelopes. Formed to exact radius per drawing.

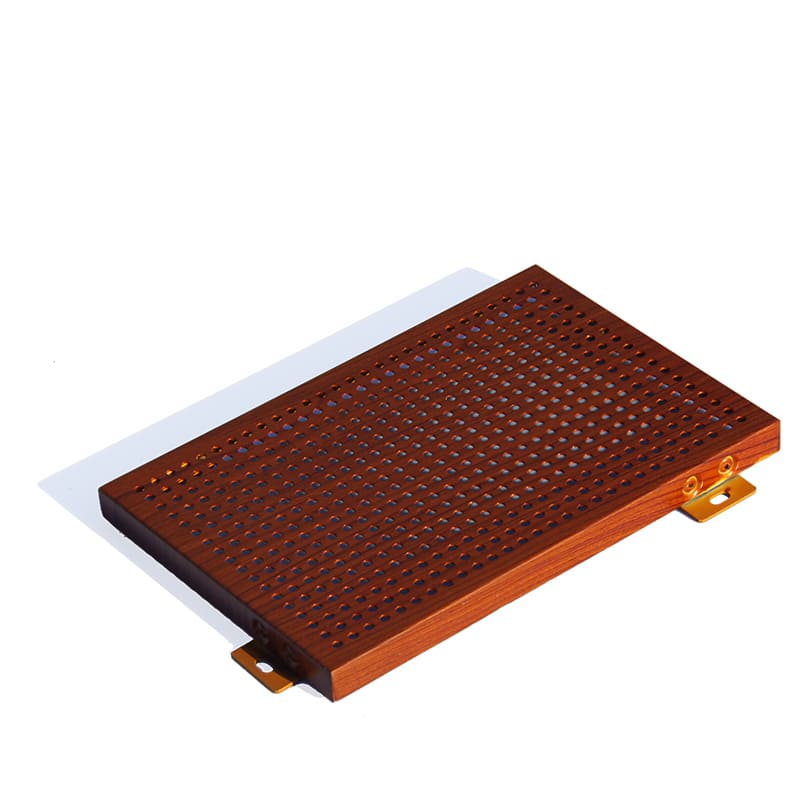

Perforated Panels
CNC-punched panels with circular, square, or custom pattern perforations. Used for sunshading, privacy screens, decorative facades, and ventilated cladding systems.

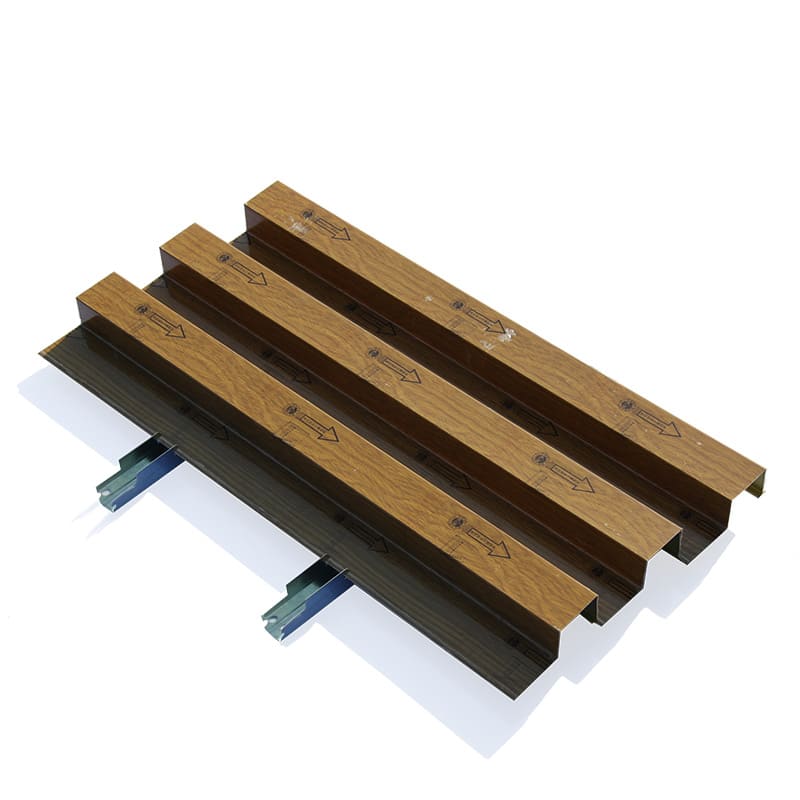

Great Wall Panels
Profiled aluminum panels with a distinctive horizontal ribbed surface texture, providing enhanced rigidity and a premium architectural appearance without additional weight.

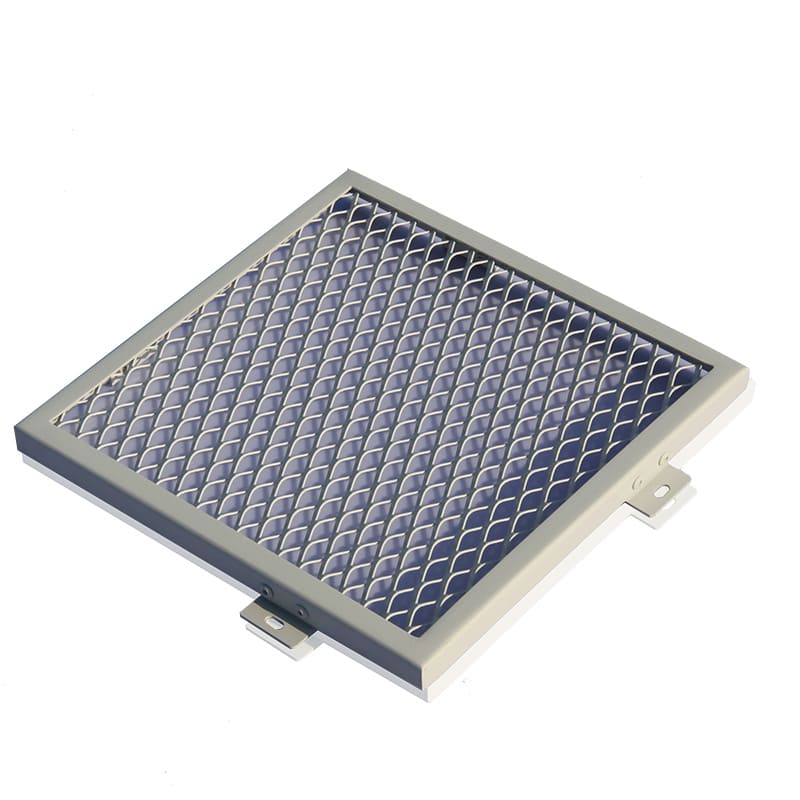

Mesh / Expanded Metal Panels
Expanded or woven aluminum mesh panels for ventilated facade systems, parking structures, and feature screens. Excellent for air circulation while maintaining visual screening.

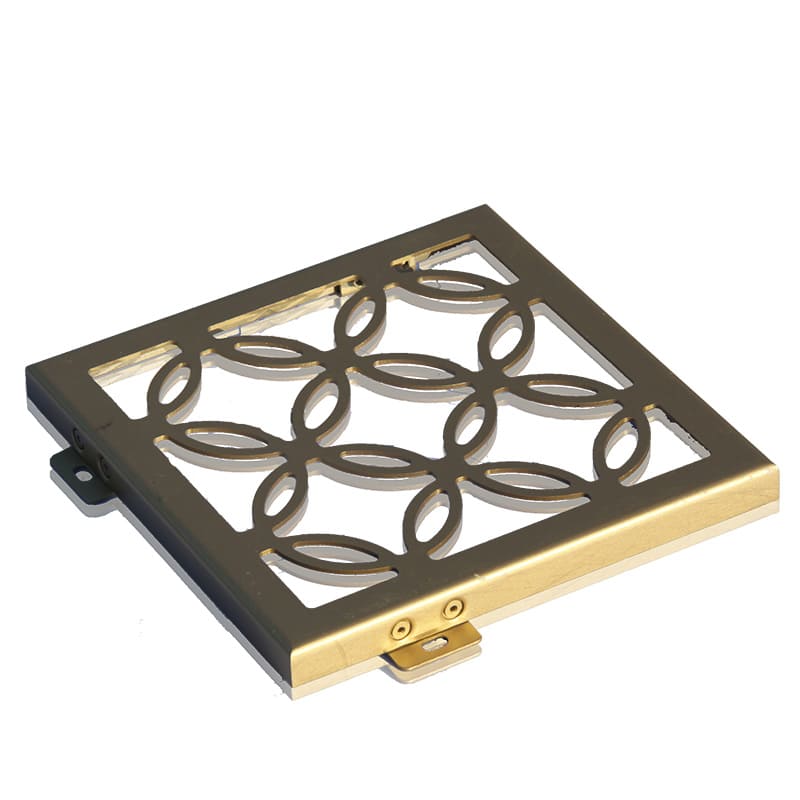

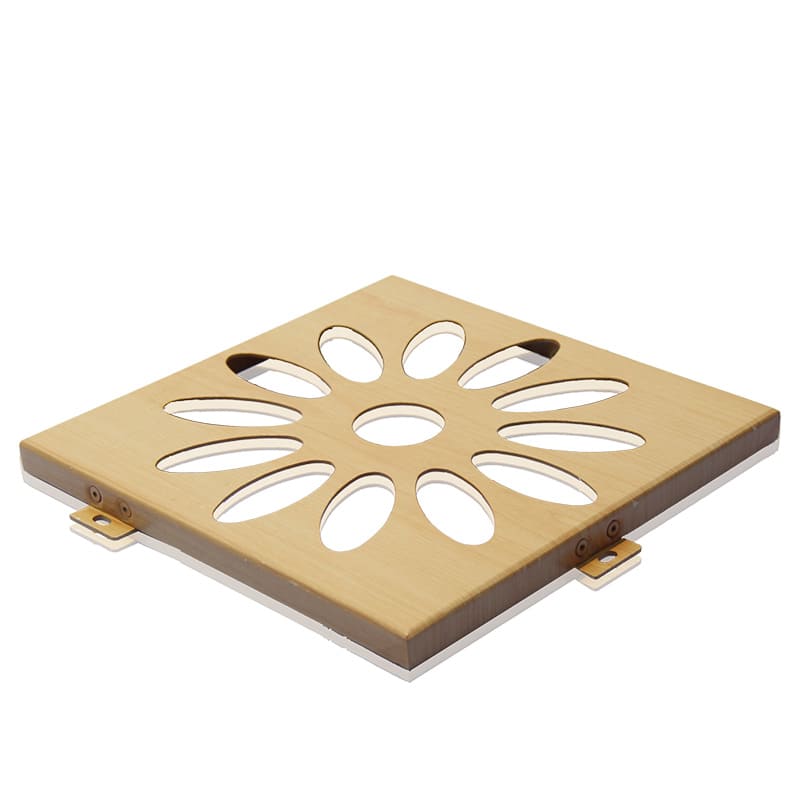

Custom Shaped / Carved Panels
Complex 3D-formed panels with CNC-carved patterns, custom relief textures, or non-standard geometries. Suitable for landmark buildings, cultural centers, and signature architecture.
Built to Your Exact Specifications
PUMAY does not sell standard stock panels. Every order is manufactured to project drawings. Our engineering team reviews your specifications and provides pre-production confirmation before manufacturing begins.
Custom Dimensions
Any panel size up to 1,500 × 4,000mm. Non-standard shapes, corner panels, and transition pieces manufactured to drawing.
Color Matching
Match any RAL, NCS, or Pantone reference. Physical sample matching available. Consistent batch-to-batch color tolerance across large orders.
Bracket Systems
Integrated hidden-frame or exposed-frame bracket systems. Designed to coordinate with your curtain wall structure. Structural drawings provided.
Shop Drawing Review
Submit your architectural drawings. Our team reviews, confirms feasibility, and returns production drawings for approval before manufacturing.
How the Custom Order Process Works
Submit Drawings
DWG, PDF, or sketch with dimensions
Engineering Review
Feasibility check + quote within 48h
Sample Approval
Pre-production sample for sign-off
Production
15-25 working days batch production
QC & Export
Inspection report + export packaging
Where PUMAY Facade Panels Are Specified
Trusted by facade contractors, developers, and architects across commercial and infrastructure sectors worldwide.

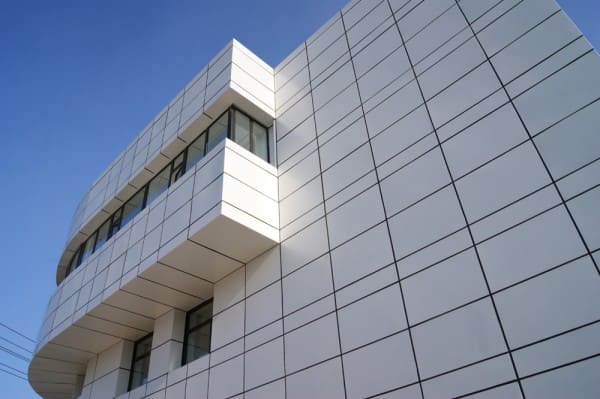

Office & HQ Buildings
Premium facade cladding for corporate headquarters and office towers. PVDF-coated panels provide consistent color and low-maintenance performance over decades.

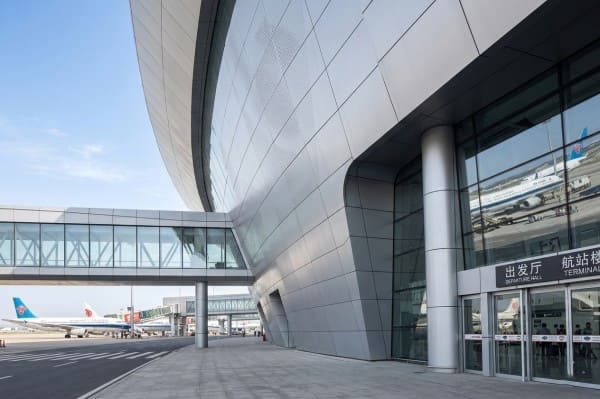

Airports & Transit Hubs
Large-scale facade systems meeting fire resistance, wind load, and acoustic requirements for airports, railway stations, and public transportation infrastructure.
Hotels & Resorts
Distinctive facade designs for luxury hotels and resorts. Custom shapes, metallic finishes, and carved patterns create signature architectural identities.
Shopping Malls & Retail
Eye-catching perforated and decorative panels for retail facades. Sunshading and privacy screening functions integrated with visual brand identity.

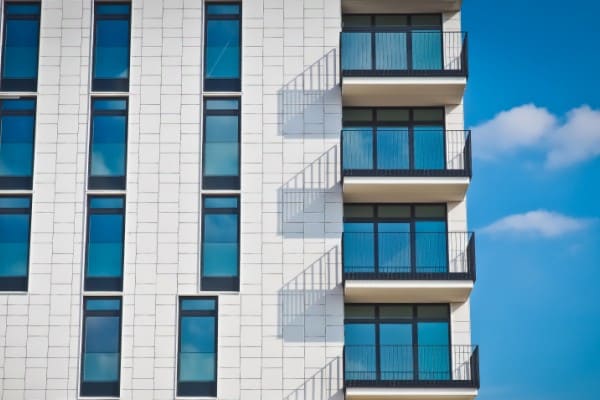

Premium Residential
High-rise residential towers and luxury apartment developments. Durable, low-maintenance cladding that retains aesthetic appeal across the building lifecycle.
Cultural & Civic Buildings
Museums, civic centers, and landmark cultural buildings. Complex 3D shapes and carved decorative panels produced to architectural vision with precision manufacturing.
Why Facade Contractors Choose PUMAY
Not claims -- verifiable capabilities that matter to project procurement and construction coordination.
Real Manufacturing Factory -- Not a Trading Company
PUMAY owns and operates a 5,000㎡ production facility in Foshan, Guangdong. We manufacture in-house: CNC bending, welding, coating, quality control, and packaging. No middlemen. Factory audit and video inspection available.
Engineering Support Throughout the Project
Our technical team reviews shop drawings, provides production drawings for approval, and coordinates with your facade engineer on structural connection details and thermal expansion joints.
Reliable Lead Times for Construction Schedules
Standard production: 15-25 working days after drawing approval. We understand construction schedules are fixed. PUMAY maintains clear production milestones and provides shipping documentation on time.
Export Packaging & Logistics Coordination
Panels packed in export-grade wooden crates with foam protection and corner guards. We coordinate with freight forwarders for FCL/LCL sea freight, air freight, and door-to-port delivery.
Certifications & Quality Assurance
Frequently Asked Questions
Common questions from international buyers, facade contractors, and project procurement teams.
Ready to Specify Aluminum Facade Panels?
Whether you have detailed drawings or just a rough concept, PUMAY's engineering team will review your requirements and provide a detailed quote within 48 hours.
